Cadillac CTS-V Gen 1 Differential Bearing Kit – Version C

Cadillac CTS-V Gen 1 Differential Bearing Kit – Version C

Finally, a bearing kit for your V1 CTS-V! We’ve invested a lot of time and effort into building these bearing kits. You won’t find them anywhere else!

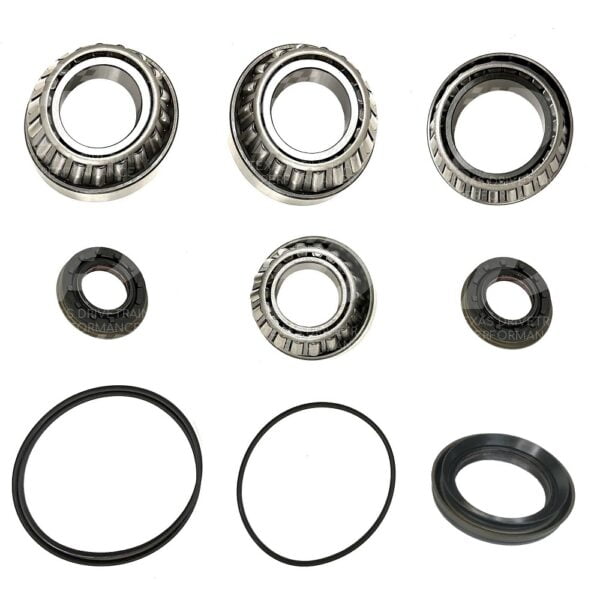

Includes the following:

• Differential side bearings & races
• Inner & outer pinion bearings & races
• Axle stub shaft seals
• Pinion seal
• Pinion housing o-ring
• Case o-ring

If your Cadillac CTS-V is a Gen 1 (04-07) then this (Version C) kit should be correct, however we recommend physically checking the differential before ordering. See chart below

CTS-V Bearing Kit Identification Chart

Go underneath the car to check the following items

Verify that it’s a cast aluminum differential housing. If yes, then it’ll use this bearing kit (Version C).

• CTS-V Gen 1 Cast Aluminum Housing with 3 3/8″ seal – Version C

If your diff is cast iron, then see below

Check if you can physically see the pinion seal at the front of the differential assembly behind the yoke

If you can see the seal is larger than the pinion yoke dust shield, then it’s the 4 3/8″ seal which means it’ll use the Version B kit

• Cadillac CTS-V Gen 2 Differential Bearing Kit – Version B

If you cannot see it, then it’s the smaller 3 3/8″ seal and will use the Version A kit

• Cadillac CTS-V Gen 2 Differential Bearing Kit – Version A
